Heat transfer software SIMU-THERM

[Peyman 16,150]

SIMU/THERM is a heat transfer calculation software developed for refractory design.

Due to the precise mathematical modelling of the heat transfer process it is also appropriate

for all kinds of high temperature applications. The initial program was written in 1989-/90

based on the author’s experience in refractory design and thermal computation.

Today it is improved continually in close contact with renowned companies

using SIMU-THERM every day.



SIMU-THERM 6.5 is a self explaining Windows program. Thus it is suitable for

occasional users as well as fast working experienced users.

SIMU-THERM’s print forms can be adapted to the user’s corporate layout. Adaption of logos,

comments etc. is included in delivery and can be modified easily later by the user

The software is available in English and German. The documentation in PDF (Acrobat Reader)

can be used online or offline. It is available in English only.



Requirements

Unlike earlier versions SIMU-THERM 6.5 is independent of MS Office.

Acrobat Reader is necessary for using the PDF documentation

If you use the Office expansionsSIMU-THERM 6.5 needs MS Excel for printing and a database

capable of ODBC (not necessarily Access) for the material mangement.



The SIMU-THERM “philosophy“

There used to be no possibility of performing advanced thermal calculations for a

refractory engineer because no affordable software was available.

Thus SIMU-THERM is dedicated to these goals:



Deliver high quality software for advanced thermal calculation

at reasonable prices

Simplifying the handling of this software in order to allow the common

usage of these methods

Even the first release of SIMU-THERM in 1990 (for MS DOS) included transient

calculation and a comfortable dialog based user interface.

Today the Finite Element interface enables the user to perform multidimensional

computations within 15 minutes.



The present module structure

Today SIMU-THERM consists of a basic program and several expansion modules.

The base program is a high end heat transfer program allowing steady state and

transient calculations.

Features of the base program:

Steady state and transient calculation up to 30 wall layers

Heat transfer coefficients calculated according to ASTM680 (1986 and 2004), VDI heat atlas.

Air gap layers: calculation for static air and free or forced air flow.

Calculation includes the heat transfer across the gap by thermal radiation.

Impact of combustion atmosphere and heat bridges on heat conductivity

Material management system in including a collection of basic refractory material classes.

Easy input and retrieval of your own materials.

Supports the use of alias names and multilingual names for materials.

Print forms can easily be altered. 4 predefined print forms, each in printable

English, German, French, Italian, Spanish. More languages are easy to add.



Version 6.6 - Trial



برای مشاهده این محتوا لطفاً ثبت نام کنید یا وارد شوید.

• ورود
• یا
• ثبت نام



Version 7 - Trial

برای مشاهده این محتوا لطفاً ثبت نام کنید یا وارد شوید.

• ورود
• یا
• ثبت نام





[Peyman 16,150]



Steady state heat transfer calculation in SIMU-THERM 6.5

برای مشاهده این محتوا لطفاً ثبت نام کنید یا وارد شوید.

• ورود
• یا
• ثبت نام





4 reasons for SIMU-THERM



Suitable for a wide range of applications

SIMU-THERM offers a lot of useful features for the high temperature technology.

transient simulation

multidimensional Finite Element calculation

transient simulation of drying of fire concretes

transient simulation of thermal stress

air gap layers with air flow

simulation of special heating conditions etc.



Flexible and open software

SIMU-THERM admits a maximum of independence.

E.g. the material database: By simply inserting a line in the attribute list you can define new attributes or curves types which you can maintain in SIMU-THERM afterwards.

E.g. print forms: You can arrange the print layout according to your needs, use different layouts for different customers and each layout in different print languages.

Moreover, if you intend to perform additional calculations on the results, there is an option to use MS Excel sheets as print forms. You can do described modifications without contacting us.



Highly innovative

We will continue to adapt useful developments in computer technology to your convenience. We constantly include new features into our software responding to technical progress in refractory design in close contact to our customers.



Competent advisory service for your applications

Experience has shown that SIMU-THERM’s self explaining user interface enables new users to accomplish steady state calculations without training.

We support your start in advanced calculations, e.g. transient simulation or Finite Element calculation by offering advice concerning your specific application.







[Peyman 16,150]

Basic progam modules

simu-therm consists of the following basic program modules:



• Calculation projects

• Steady state calculation

• Air or gas spaces in refractory walls

• Transient simulation

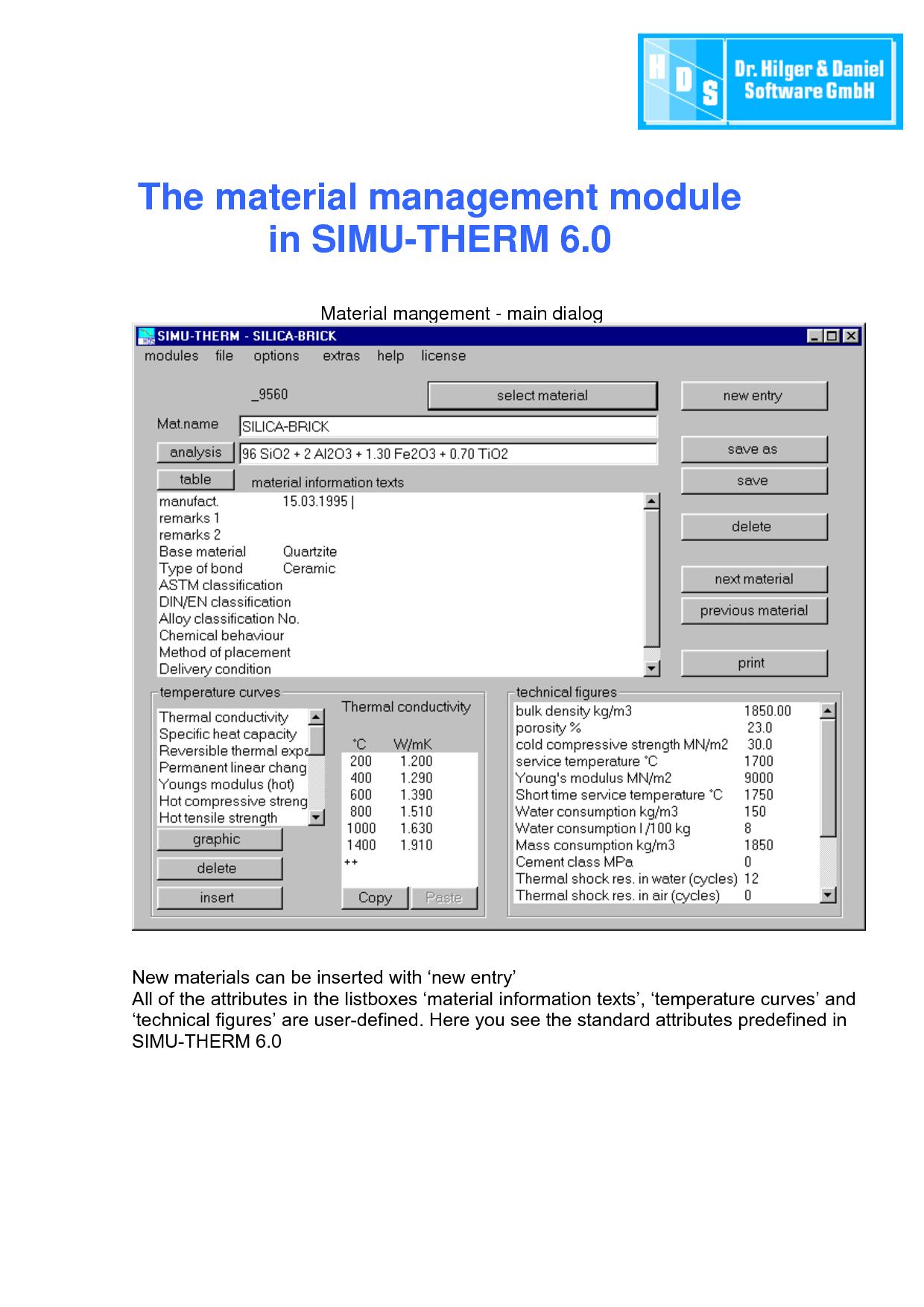

• Material management




برای مشاهده این محتوا لطفاً ثبت نام کنید یا وارد شوید.

• ورود
• یا
• ثبت نام

[met@llicaaa 10]

با سلام خدمت دوستان گرامی

من به این نرم افزار و یا شبیه به این شدیدا احتیاج دارم راهنماییم کنین که چطور میتونم خرید یا بصورت رایگان بدست بیاورم.

برنامه rltm رو پیدا کردم اما رجیستری نیست و باید خرید بشه.لطفا راهنماییم کنین.

ممنونم
